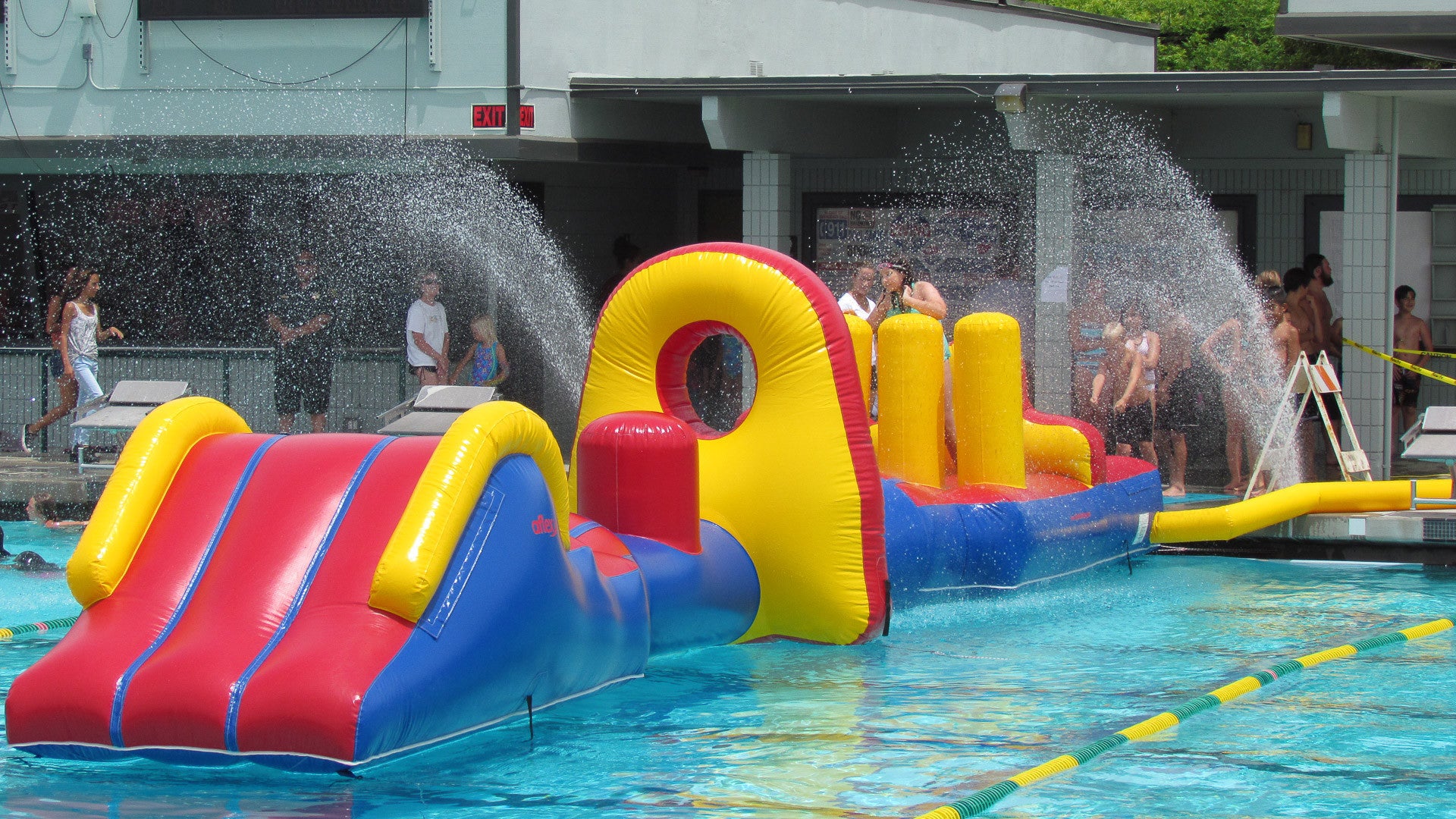

Mighty Medley

Combining some of the most popular elements of our pad and tubular models the Mighty Medley is a great challenge suitable for a wide age range! Biff bash poles, hole in the wall, a tubular obstacle and finishing with a slide, it's a proven bestseller that's fun for all! Do you like this constant airflow obstacle course but aren't sure if it is suitable for your facility? Let's chat about how we can customise this design to suit your pool's requirements.

Product Specifications

Range: Constant Airflow Obstacle Courses
Location Suitability: Commercial Pools/Aquatic Centres
Inflation Type: Constant Airflow
Colour: Aflex blue, red & yellow (unless otherwise specified)
Product Code: CP-082-00

Dimensions

Length: 12.8 m  (42 ft)
Width: 1.8 m (6 ft)
Height: 2.2 m (7.2 ft)
Maximum Obstacle Height: 1.3 m (4.3 ft)
Standard Slide Height: 1.3 m (4.3 ft)
We can easily customise slide height for your pool.
Approx. Weight: 79 kg (174 lbs)
Approx. Packed Size: 0.8 m (2.6 ft) x 0.8 m (2.6 ft) x 0.7 m (2.3 ft)

Safety Guidelines

Pool Size: 18 m+ (59 ft+)
Minimum Water Depth at Entry: 1.2 m (3.9 ft)
Minimum Water Depth at Exit: 1.55 m (5 ft)
Splash Zone: 2 m (6.6 ft)
Splash Zone refers to the minimum open water area around the product.
Splash Zone at Exit: 3 m (9.8 ft)
Age Suitability: 6-16 yrs
Lifeguards: 2-3
Maximum Capacity: 3 users at one time
This is an estimate based on average youth size.

Installation

Anchor Points: 4
Blower Type: Medium
Setup Time: 20 minutes

All details are suggested guidelines and estimates only. For your specific safety requirements, please refer to your local and federal government regulations.
